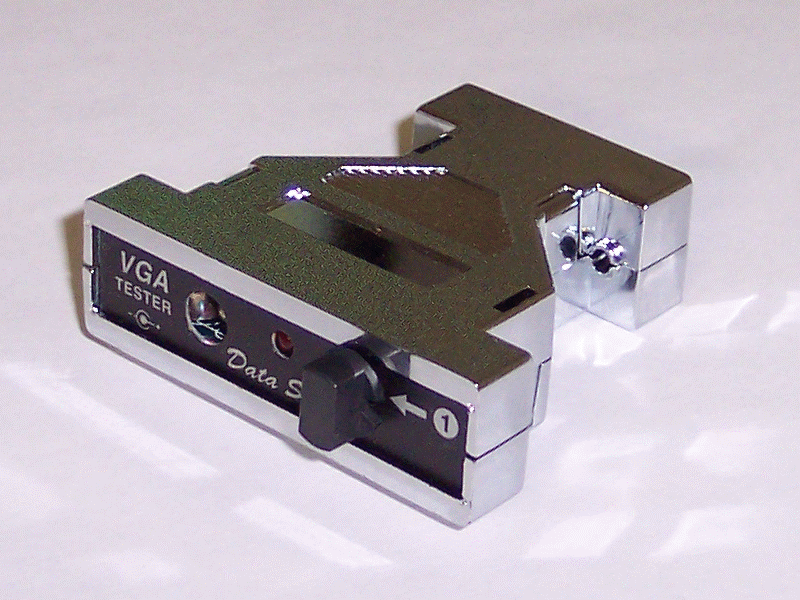

VGA-SE10 Tester

Manufacturer     Data Sync Engineering
Model     VGA-SE10
Price     $ 87.00
Shipping     $ 12.00 (Within USA)



XGA 1024x768 Computer Monitor & Projector Tester

"Fixed resolution version of our popular VGA-Plus"


Awesome For Setting Up Video Presentation Equipment !!!


This is the brand new, pocket sized, VGA-SE10 computer monitor tester designed for on-site testing and aligning of computer monitors and video projectors without the need of a computer. The VGA-SE10 provides 16 switch selectable display patterns at the 1024 x 768 video resolution commonly used with XGA projection systems. The VGA-SE10 will test for Bad Pixels, Color Wheel Operation, Blank Raster, Convergence, Linearity, Color Balance, Screen Alignment and Interconnecting Cable Quality. The tester is equipped with a DC power jack and has a 15-pin high-density female D-Sub connector. The unit measures 2.25" x 2.18" x .65" and is powered with a 9-volt battery or optional AC wall adapter (battery clip included).


Switch Selectable Display Patterns

Position 1
Red Screen
Switch Position 1
Position 2
Green Screen
Switch Position 2


Position 3
Blue Screen
Switch Position 3



Position 4
White Screen
Switch Position 4



Position 5
Blank Raster
Switch Position 5



Position 6
White Outline Border
Switch Position 6



Position 7
Cyan Screen
Switch Position 7



Position 8
Magenta Screen
Switch Position 8



Position 9
Yellow Screen
Switch Position 9



Position 10
Color Bar 1
Switch Position 10



Position 11
Color Bar 2
Switch Position 11



Position 12
Gray, White & Black Box
Switch Position 12



Position 13
Grid with Black Background
Switch Position 13



Position 14
Grid with Red Background
Switch Position 14



Position 15
Grid with Blue Background
Switch Position 15



Position 16
Grid with Magenta Background
Switch Position 16



Want to know more about the VGA-SE10 Tester ?

Download a copy of the Operation Manual
(in PDF format)
